In Slab Heating

Coldbuster In Slab Heating

The Coldbuster In Slab heater is a bi-directional, single ended 6.5mm cable, rated at 30W/m and is supplied as a cable on a roll. Heaters have 3m long cold tails that can be connected to a programmable or manual thermostat. Coldbuster’s In Slab Heating cables come in a range of 13 standard lengths to cater for areas of all shapes & sizes. These 13 heaters can be combined to suit any area – from small bathrooms, to large hallways.

Safe and easy install

The Coldbuster In-Slab heater is specifically designed to be easily attached to the reinforcement grid of your foundation. Concrete is then poured on top, followed by the floor finish of your choice. In-Slab heaters are highly recommended for all polished concrete projects; however, it is also suitable for the majority of floor finishes, including stone, porcelain and ceramic tiles. The heating cable is waterproof, fully earthed and needs to be connected to an RCD protected circuit after installation. Once the heater is laid, it is out of sight, meaning no heating cables will be accessible by children or pets – ensuring a perfectly safe environment for the whole family.

Programmable or manual thermostat control

Complete comfort control is easily achieved with the addition of optional manual or programmable thermostats available through Coldbuster. Automated operation enhances the energy efficiency of the Coldbuster heating system. Programs can be set to regulate comfort levels via floor or room air temperature, up to 4 cycles per day, accommodating different weekday and weekend routines.

In-Slab heating cable features:

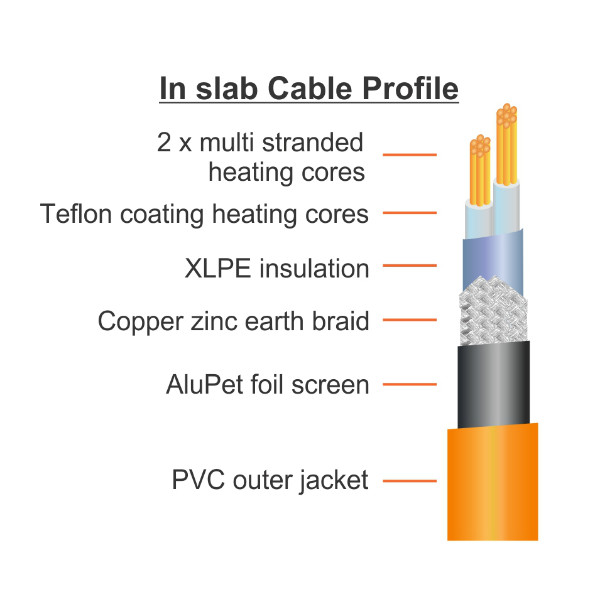

  • Bi-directional, single ended 6mm cable, rated at 30W/m and supplied as a cable on a roll
  • Factory terminated single 3m long cold tail
  • Element & cold tail connections are fully earthed & waterproof
  • AE-SS installation monitor (element alarm/tester) with batteries

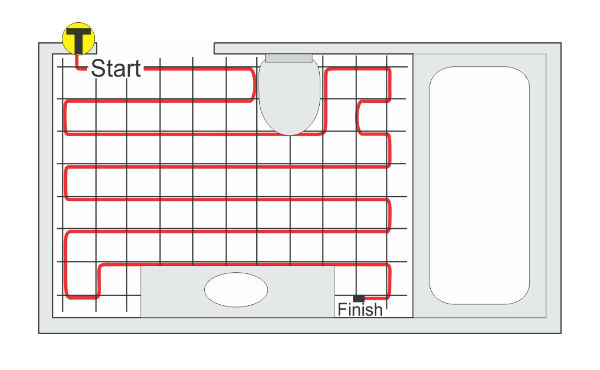

  • Personalised floorplan layout available upon request
  • Installation guidelines
  • Technical & installation support (telephone and/or email)
  • 20 Year warranty

Service and support

Coldbuster provides a free design service and planning advice for your complete room heater layout. We are available to answer your questions relating to electrical preparation or installation of your floor heating system. If you prefer to leave the installation to a floor heating contractor, a professional design & installation service is available across Australia.

Coldbuster floor heating is classified as an appliance and can be installed by a competent person. The heater must be connected to an RCD (safety switch) protected circuit by an electrician. All wiring must conform to AS/NZS 3000:2000 and local wiring regulations.

Categories

Want to find out more?

Visit our resource centre, a hub for all documentation, videos and helpful tips and tricks!
Resources

Read more news

Key Factors Affecting the Running Costs of Electric Floor Heating from Coldbuster

There are many factors and assumptions that may influence the costs of running electric floor heating.

Please note that the factors and the assumptions that underpin this Running Cost Calculator mean that results should only be used as a rough guide, as conditions (some of which are listed below) can vary greatly.

The efficiency and cost of the electricity used for heating directly impact running costs. More efficient energy sources and favourable electricity tariffs reduce overall expenses. Electricity prices vary by provider and plan. Choosing an energy-efficient tariff and monitoring peak and off-peak rates can help minimise heating costs.

The assumption in this running cost estimate model is that your energy source is cost-effective and the electricity tariff is optimised for heating needs.

The total time the heating system is operational impacts energy consumption. Running the system only when necessary and using programmable thermostats to create heating schedules can optimise usage.
The assumption in this running cost estimate model is that your heating is running only when necessary and optimised accordingly.

A duty cycle for electric underfloor heating represents the percentage of time the system is actively heating versus its total operational time. After the floor reaches its set temperature, the system cycles on and off to maintain it. The calculator factors this in and assumes a 50% duty cycle.

The temperature set on the thermostat directly affects energy usage. Lowering the thermostat temperature by just a few degrees can significantly reduce running costs without compromising comfort. Programmable and smart thermostats can optimise heating schedules, reducing energy use during non-peak times and enhancing overall efficiency. Setting the thermostat to an optimal temperature (e.g., 20-22°C) during occupied times and lowering it (or even better turning it off) when not in use can significantly affect running costs.

The assumption in this running cost estimate model is that you are using one of Coldbuster’s smart programmable thermostats to manage heating schedules effectively and that the settings are optimised for both comfort and efficiency.

Proper insulation reduces heat loss, making the heating system more efficient. Effective insulation in your floors, walls and roofs will help maintain the desired temperature with less energy consumption. Better insulation helps retain heat within the room, minimising the energy required to maintain comfort.

The assumption in this running cost estimate model is that your building has high-quality insulation materials installed in the walls, roof, and floor.

The type of floor substrate affects heat retention and energy efficiency. Concrete floors, for example, retain heat longer, while timber floors may require more energy to maintain warmth.
The assumption is that your floor substrate is conducive to efficient heating, with thermal insulation boards used where necessary to enhance heat retention.

Different floor coverings have varying thermal properties. Materials like tile and stone conduct heat efficiently, while carpets and wood may require higher energy to achieve the same comfort level.
The assumption in this running cost estimate model is that your flooring material is chosen with consideration of its thermal conductivity and compatibility with the heating system.

Draughts from poorly sealed windows and doors, as well as other gaps, can lead to heat loss and increased energy consumption. The type and quality of windows and doors significantly impact heat loss and gain. Double-glazing and well-sealed frames reduce draughts and improve thermal efficiency.
The assumption in this running cost estimate model is that your windows, doors, and other potential gaps are well-sealed to prevent drafts and heat loss.

The overall energy efficiency of a building, including factors like construction quality, age, design and energy ratings, all affect its thermal efficiency and hence impacts heating costs. Older buildings may have more heat loss compared to newer, energy-efficient constructions.

The assumption in this running cost estimate model is that your building is relatively modern or has been updated to meet contemporary energy efficiency standards.

The local climate influences heating needs. Colder outdoor temperatures increase the demand for indoor heating. Regions with milder winters require less heating and would therefore typically have lower running costs compared to areas with harsh winter and cold conditions.

The assumption in this running cost estimate model is based on average climatic conditions specific to the region in Australia where you are located and where the system is installed.

The efficiency of the underfloor heating system itself plays a crucial role. The efficiency determines how effectively it converts electrical energy into heat. Modern systems with advanced controls and high efficiency like Coldbuster use less energy to achieve the desired warmth.
The assumption in this running cost estimate model is that your heating system is running efficiently at all times.

The ability to control heating in different zones or rooms independently allows for more precise energy use, heating only the areas that need it.

The assumption in this running cost estimate model is that your heating system is designed with zoning capabilities for customised temperature control.

The design of the heating system, including the layout, spacing, and type of heating elements, affects heat distribution and overall efficiency. The size of the room in relation to the heater’s capacity is crucial. An appropriately sized heater ensures efficient heating without overworking the system.

The assumption in this running cost estimate model is that your heating system is designed and installed by experienced Coldbuster installation professionals or other suitably qualified professionals to ensure optimal performance and energy efficiency.

Consistent and predictable usage patterns help in planning and optimising energy consumption. Irregular or excessive use can lead to higher costs.

The assumption in this running cost estimate model is that your usage patterns are regular and not excessive.

Higher ceilings result in larger volumes of air to heat, which can increase energy consumption. Rooms with standard ceiling heights are more energy efficient.

The assumption in this running cost estimate model is that your ceiling heights are standard (2.4 to 2.7 meters) to maintain optimal energy efficiency and minimize excess energy use.
