Under Carpet Floor Heating

Under Carpet Floor Heating

Price ranges from: $268.40

(Prices Include GST)





Description

Under Carpet Heating Kits

Features:

  • 160W/m2 output designed to produce the required heat to provide evenly distributed warmth throughout the entire room from under any carpet.
  • The heating element has an IPX7 rating, meaning that it is waterproof, so the carpets can be steam cleaned.
  • Factory terminated single cold tail 3m long power lead.
  • Aluminium cover (from heater size 4.7m2) designed to shield inner electromagnetic radiation.
  • 7 different carpet heater kit sizes that can be combined to heat even larger areas.
  • installation monitor (element alarm/tester) with batteries included.
  • Installation manual provided.
  • Durable and reliable product
  • 25-year warranty on carpet heater kit

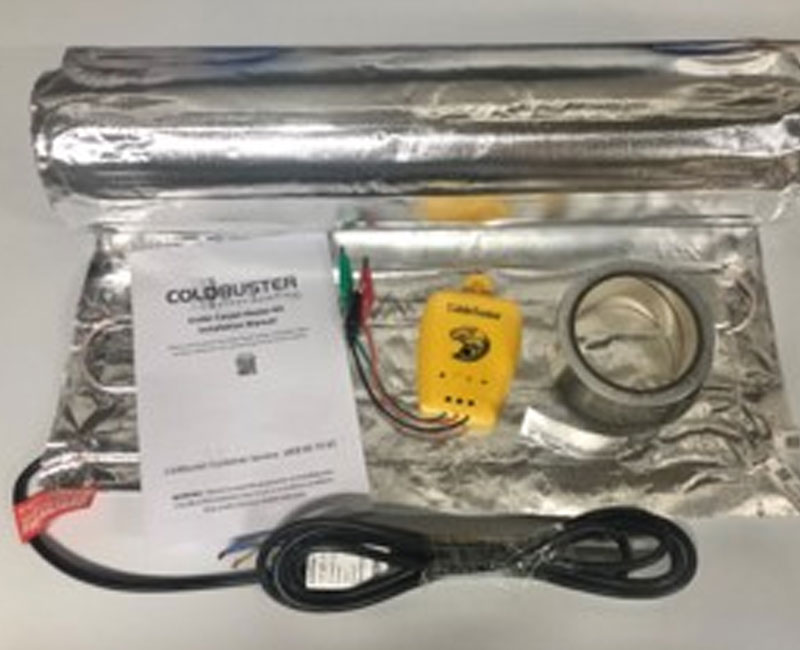

Included:

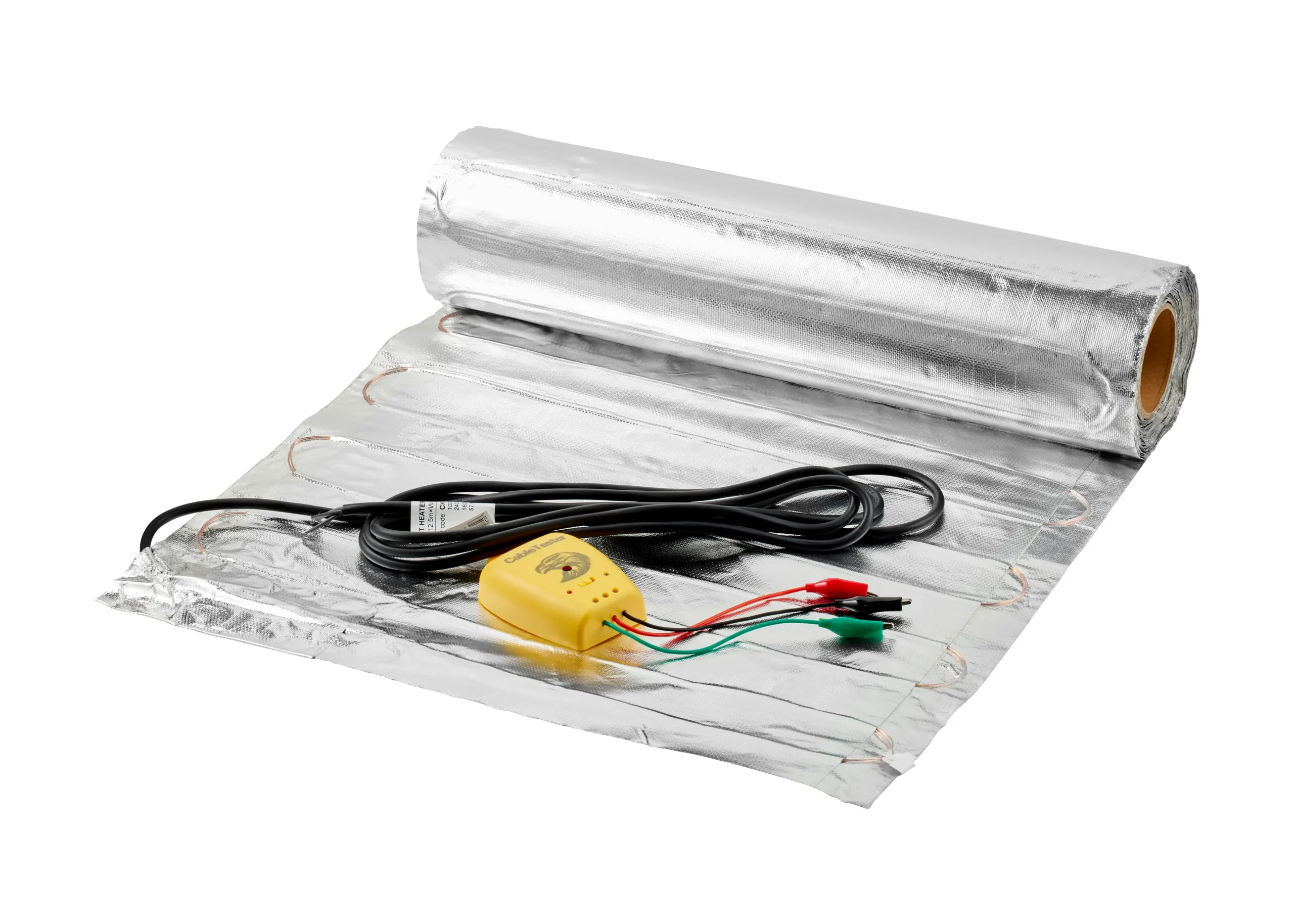

  • Under Carpet Floor Heater
  • Installation Monitor (element alarm) with battery
  • Installation Manual
  • Lifetime Installation support is available by contacting Coldbuster
  • 25 Year Warranty
  • Easy-to-install DIY kits or Coldbuster installation services are available

General Information:

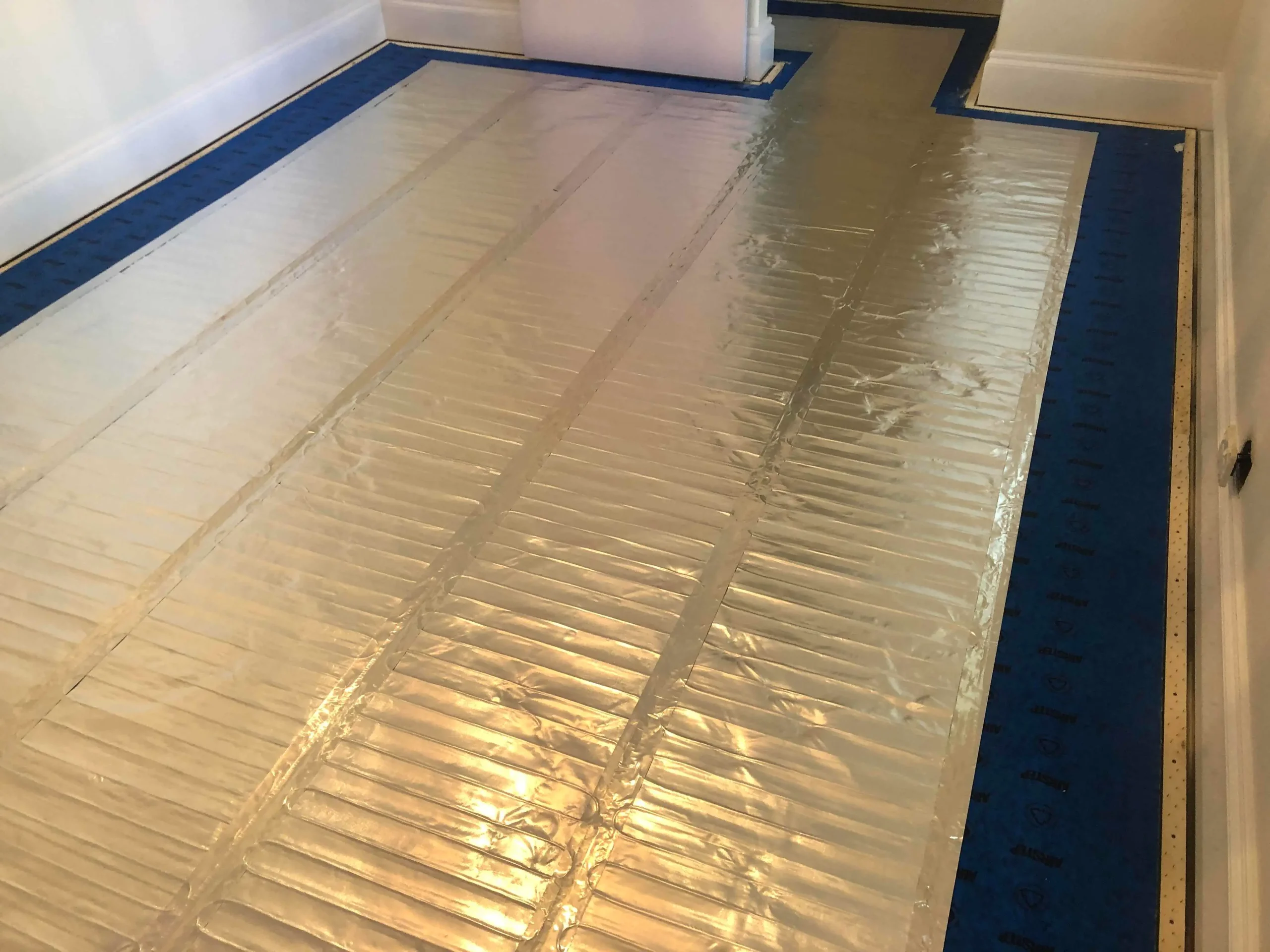

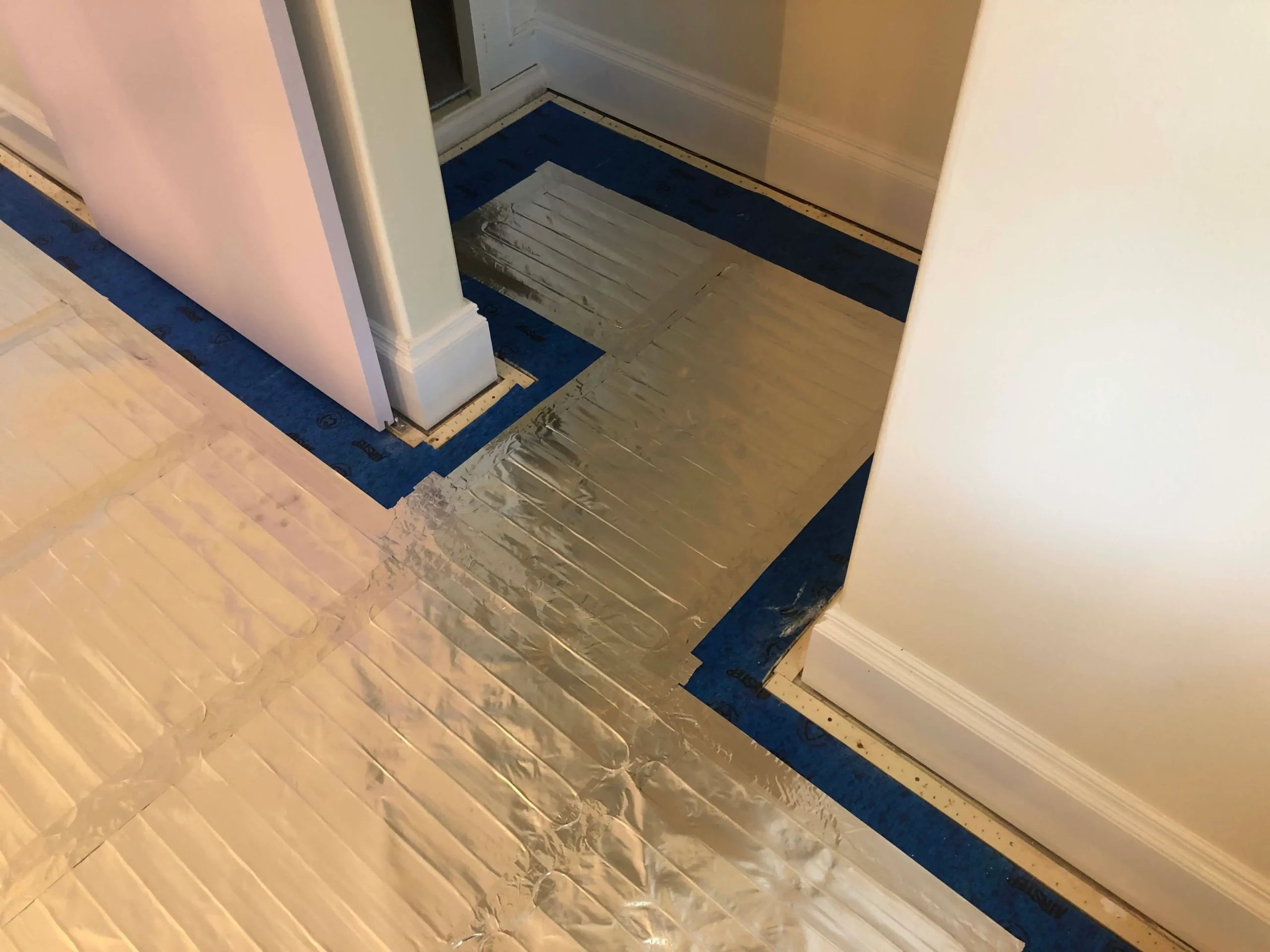

Coldbuster Under Carpet Heaters are supplied as pre-configured 500mm wide strips in a variety of 7 different lengths to suit areas of all sizes.

By combining the different heaters, there is no limit to the size of area we can heat.

The heating element is 1 – 1.4mm thin and is sandwiched between two layers of aluminium foil at a consistent spacing to ensure safe heating output.

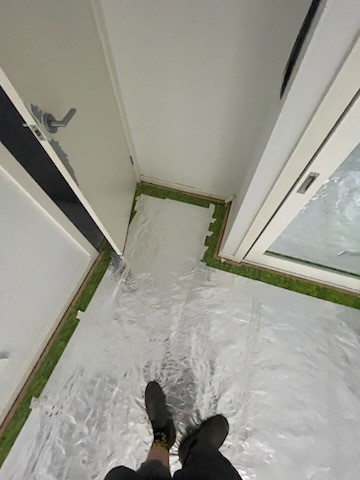

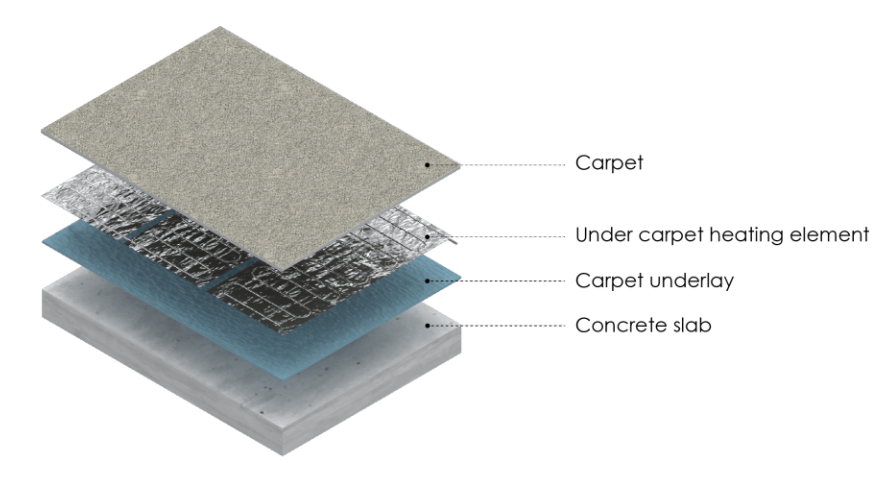

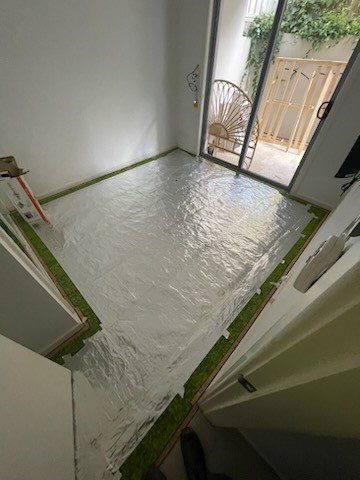

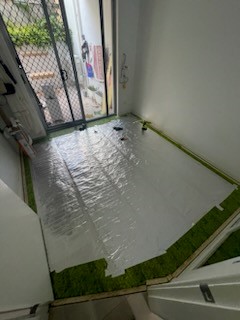

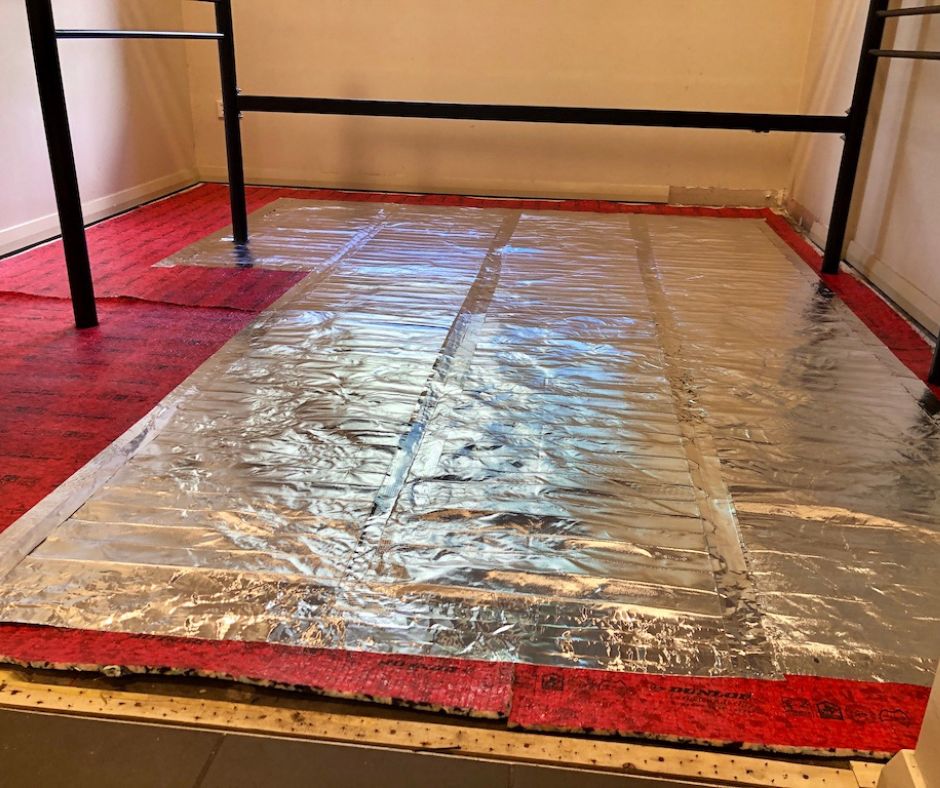

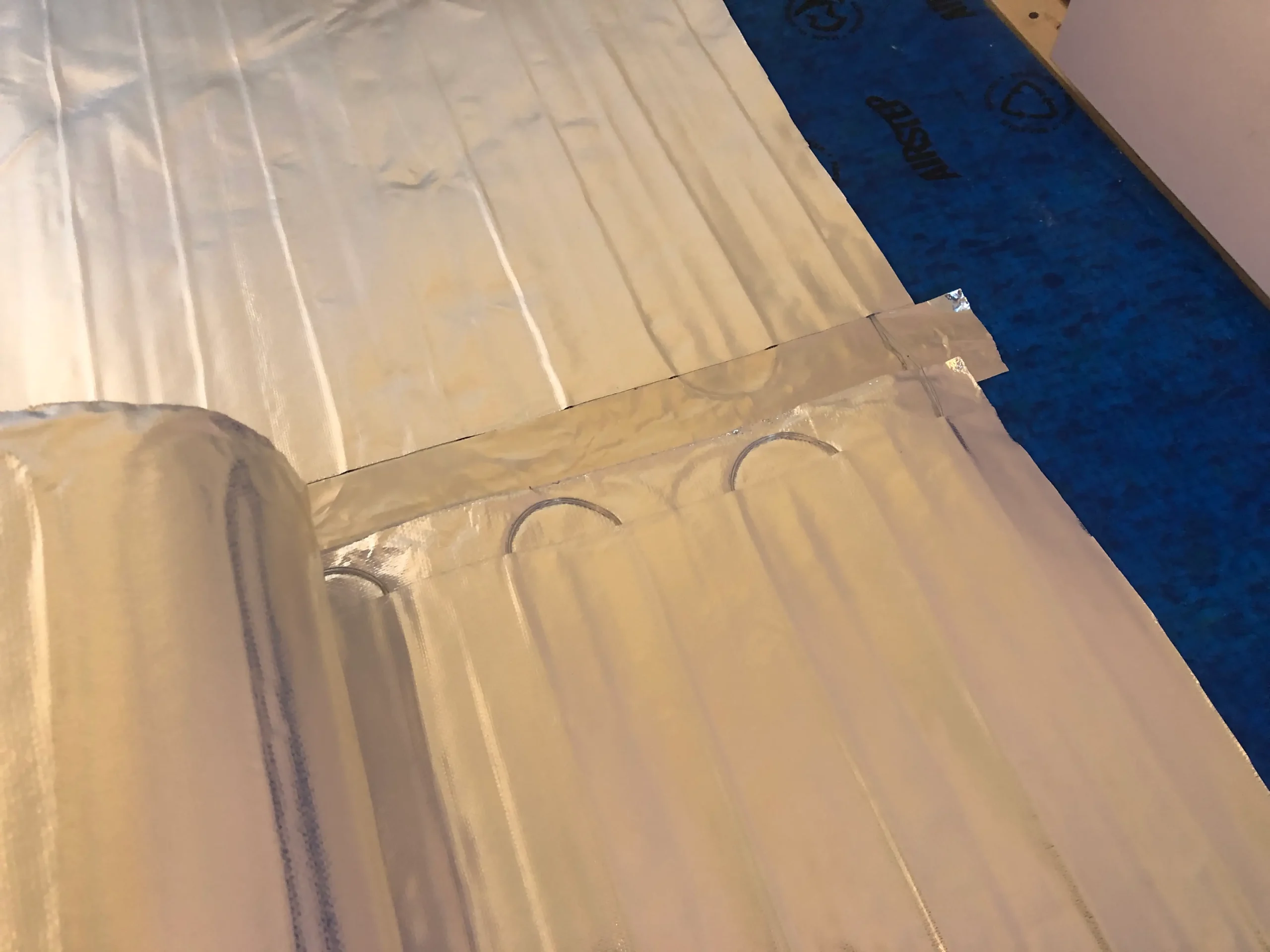

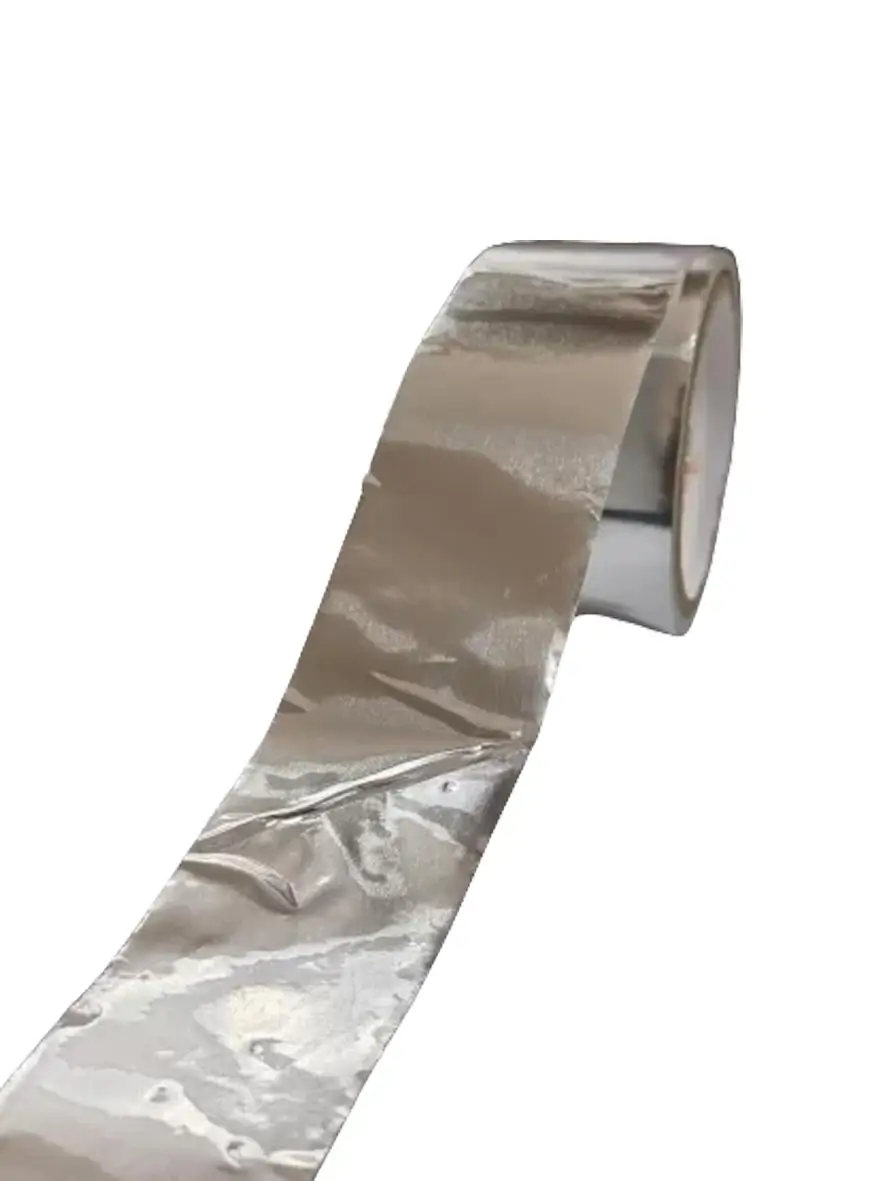

The carpet heaters are designed for easy installation between the underlay and the carpet and is kept in place using conductive silver tape (supplied by Coldbuster).

Under Carpet Floor Heating

More Info

Luxury warmth for your carpeted rooms.

Our pre-configured 500mm wide strips in a variety of 7 different lengths to suit areas of all sizes.

By combining the different heaters, there is no limit to the size of area we can heat.

Floor Projections

Typical floor projections



Installation Videos

Under carpet floor heating installation and instructions.



Running Cost Calculator

A simple tool estimate the cost of running underfloor heating

Get A Free Quote!

Take advantage of our obligation-free expert support

Key Factors Affecting the Running Costs of Electric Floor Heating from Coldbuster

There are many factors and assumptions that may influence the costs of running electric floor heating.

Please note that the factors and the assumptions that underpin this Running Cost Calculator mean that results should only be used as a rough guide, as conditions (some of which are listed below) can vary greatly.

The efficiency and cost of the electricity used for heating directly impact running costs. More efficient energy sources and favourable electricity tariffs reduce overall expenses. Electricity prices vary by provider and plan. Choosing an energy-efficient tariff and monitoring peak and off-peak rates can help minimise heating costs.

The assumption in this running cost estimate model is that your energy source is cost-effective and the electricity tariff is optimised for heating needs.

The total time the heating system is operational impacts energy consumption. Running the system only when necessary and using programmable thermostats to create heating schedules can optimise usage.
The assumption in this running cost estimate model is that your heating is running only when necessary and optimised accordingly.

A duty cycle for electric underfloor heating represents the percentage of time the system is actively heating versus its total operational time. After the floor reaches its set temperature, the system cycles on and off to maintain it. The calculator factors this in and assumes a 50% duty cycle.

The temperature set on the thermostat directly affects energy usage. Lowering the thermostat temperature by just a few degrees can significantly reduce running costs without compromising comfort. Programmable and smart thermostats can optimise heating schedules, reducing energy use during non-peak times and enhancing overall efficiency. Setting the thermostat to an optimal temperature (e.g., 20-22°C) during occupied times and lowering it (or even better turning it off) when not in use can significantly affect running costs.

The assumption in this running cost estimate model is that you are using one of Coldbuster’s smart programmable thermostats to manage heating schedules effectively and that the settings are optimised for both comfort and efficiency.

Proper insulation reduces heat loss, making the heating system more efficient. Effective insulation in your floors, walls and roofs will help maintain the desired temperature with less energy consumption. Better insulation helps retain heat within the room, minimising the energy required to maintain comfort.

The assumption in this running cost estimate model is that your building has high-quality insulation materials installed in the walls, roof, and floor.

The type of floor substrate affects heat retention and energy efficiency. Concrete floors, for example, retain heat longer, while timber floors may require more energy to maintain warmth.
The assumption is that your floor substrate is conducive to efficient heating, with thermal insulation boards used where necessary to enhance heat retention.

Different floor coverings have varying thermal properties. Materials like tile and stone conduct heat efficiently, while carpets and wood may require higher energy to achieve the same comfort level.
The assumption in this running cost estimate model is that your flooring material is chosen with consideration of its thermal conductivity and compatibility with the heating system.

Draughts from poorly sealed windows and doors, as well as other gaps, can lead to heat loss and increased energy consumption. The type and quality of windows and doors significantly impact heat loss and gain. Double-glazing and well-sealed frames reduce draughts and improve thermal efficiency.
The assumption in this running cost estimate model is that your windows, doors, and other potential gaps are well-sealed to prevent drafts and heat loss.

The overall energy efficiency of a building, including factors like construction quality, age, design and energy ratings, all affect its thermal efficiency and hence impacts heating costs. Older buildings may have more heat loss compared to newer, energy-efficient constructions.

The assumption in this running cost estimate model is that your building is relatively modern or has been updated to meet contemporary energy efficiency standards.

The local climate influences heating needs. Colder outdoor temperatures increase the demand for indoor heating. Regions with milder winters require less heating and would therefore typically have lower running costs compared to areas with harsh winter and cold conditions.

The assumption in this running cost estimate model is based on average climatic conditions specific to the region in Australia where you are located and where the system is installed.

The efficiency of the underfloor heating system itself plays a crucial role. The efficiency determines how effectively it converts electrical energy into heat. Modern systems with advanced controls and high efficiency like Coldbuster use less energy to achieve the desired warmth.
The assumption in this running cost estimate model is that your heating system is running efficiently at all times.

The ability to control heating in different zones or rooms independently allows for more precise energy use, heating only the areas that need it.

The assumption in this running cost estimate model is that your heating system is designed with zoning capabilities for customised temperature control.

The design of the heating system, including the layout, spacing, and type of heating elements, affects heat distribution and overall efficiency. The size of the room in relation to the heater’s capacity is crucial. An appropriately sized heater ensures efficient heating without overworking the system.

The assumption in this running cost estimate model is that your heating system is designed and installed by experienced Coldbuster installation professionals or other suitably qualified professionals to ensure optimal performance and energy efficiency.

Consistent and predictable usage patterns help in planning and optimising energy consumption. Irregular or excessive use can lead to higher costs.

The assumption in this running cost estimate model is that your usage patterns are regular and not excessive.

Higher ceilings result in larger volumes of air to heat, which can increase energy consumption. Rooms with standard ceiling heights are more energy efficient.

The assumption in this running cost estimate model is that your ceiling heights are standard (2.4 to 2.7 meters) to maintain optimal energy efficiency and minimize excess energy use.
