In Slab Floor Heating

In Slab Floor Heating

Price ranges from: $284.90

(Prices Include GST)
SKU: inslab Category Tag

Description

Best In Slab Heating Solutions

Features:

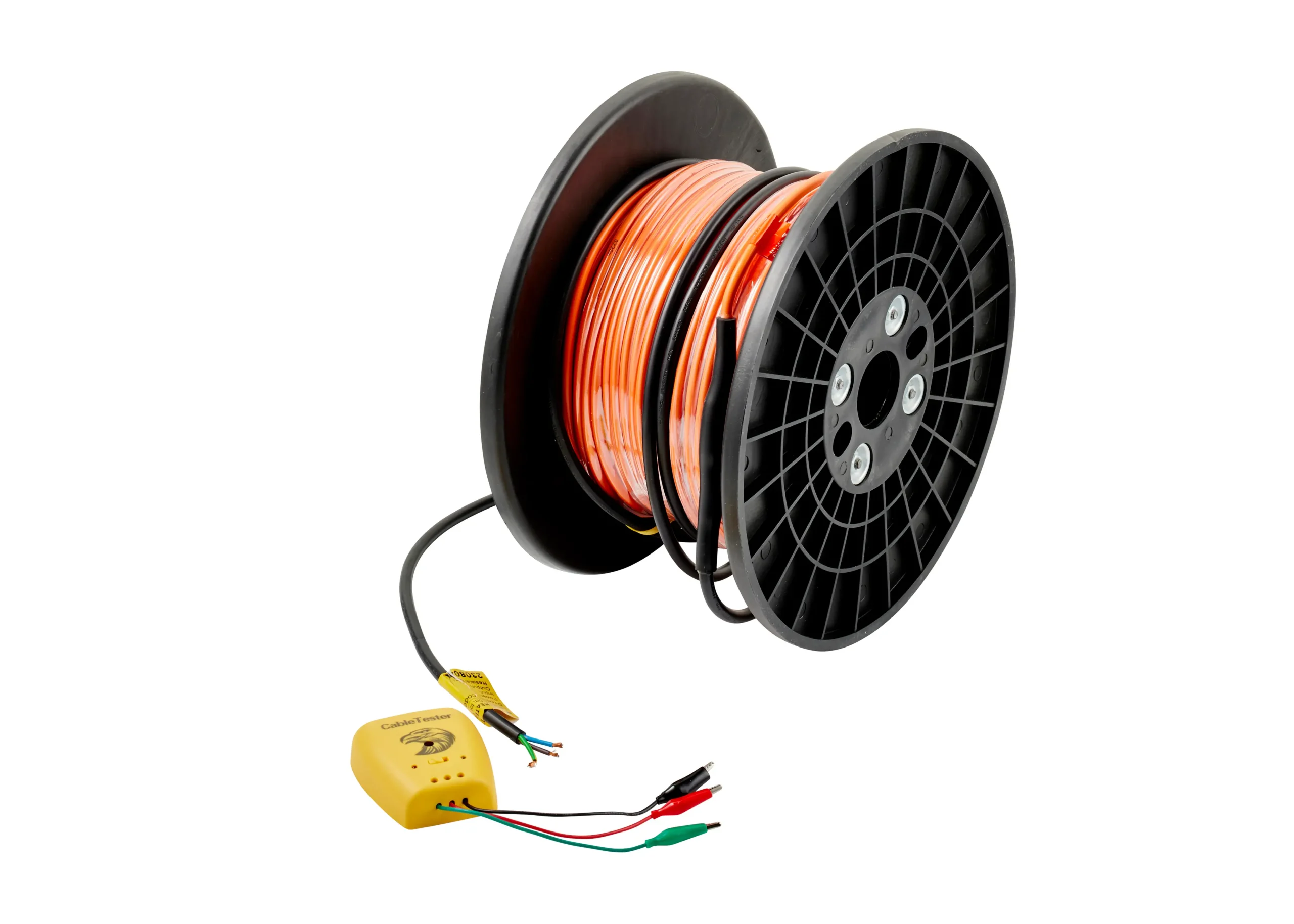

  • Teflon coated, 6.5mm thin loose underfloor heating cable, supplied on a reel with a single 3m long cold tail
  • 30W/lineal meter

Included in each Underfloor Heating  kit:

  • In-Slab Underfloor Heater

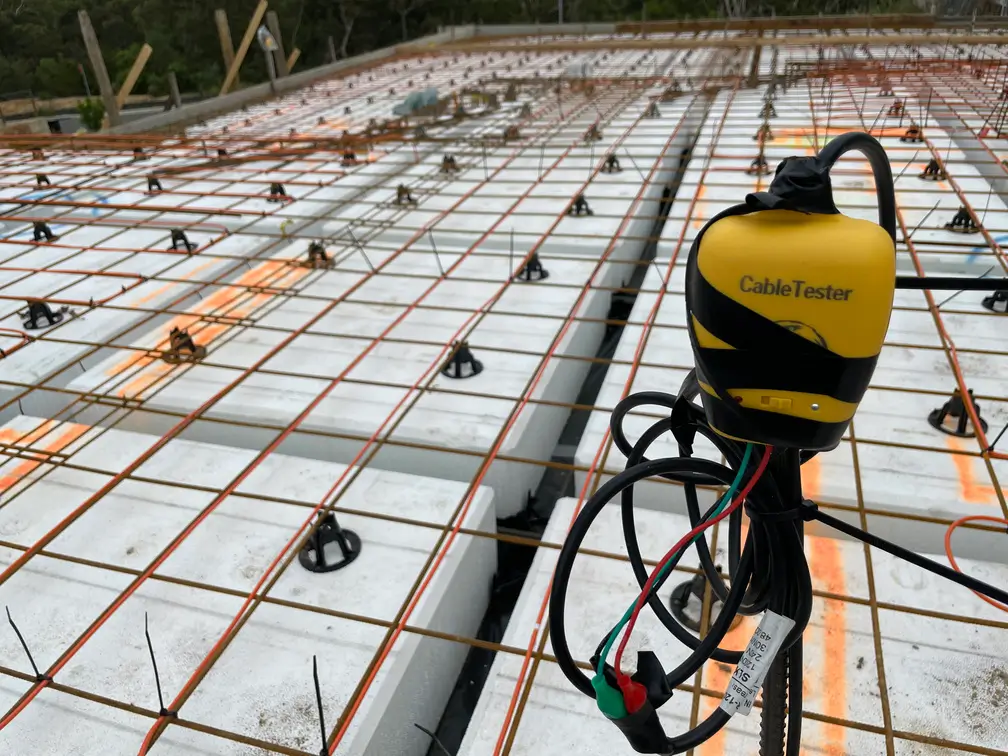

  • Installation Monitor (element alarm) with battery
  • Installation Manual
  • 25 Years Warranty
  • Note: Thermostats sold separately

Basic Installation Instructions:

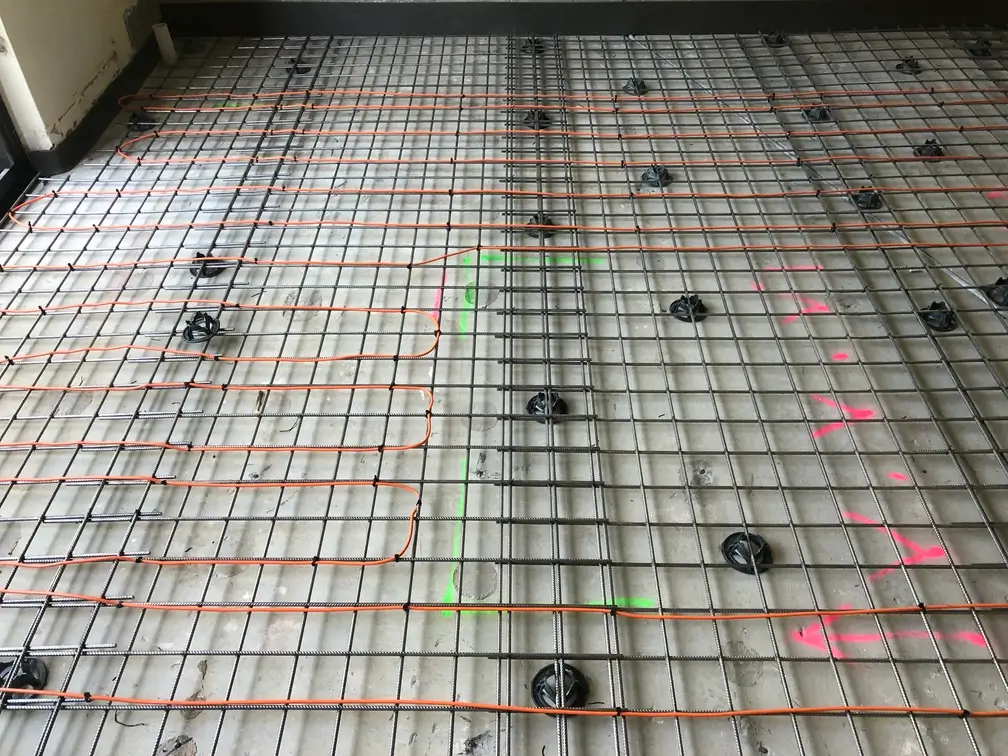

  • It is recommended to install the in-slab underfloor heater with 200mm spaces between each run (matching typical reinforcement grid spacing) to achieve the correct wattage per square meter
  • Plan heater layout before securing the heating to the reinforcement grid in order to ensure it will fit properly

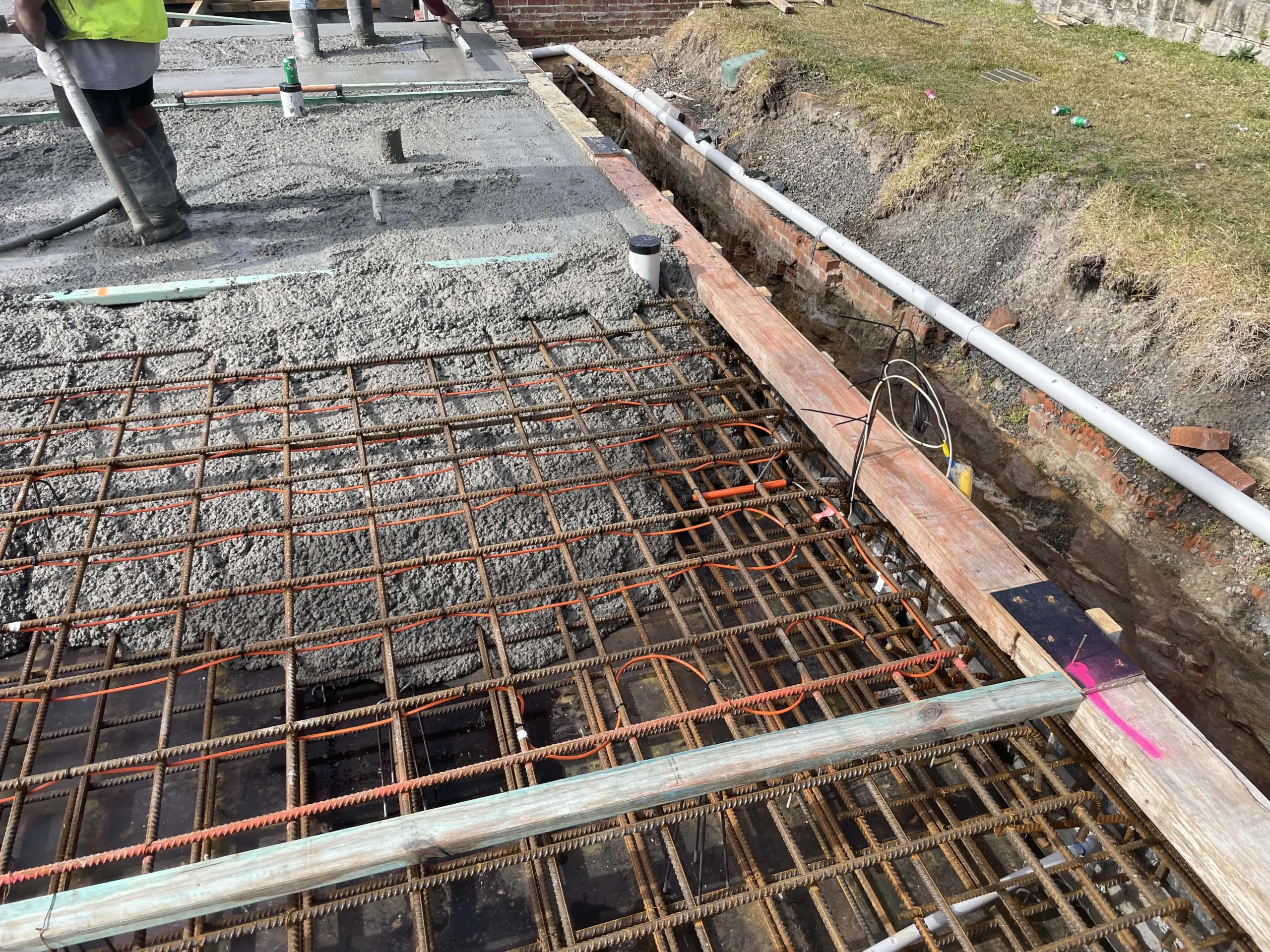

  • Secure the heater to the reinforcement grid using cable ties and cut the cable ties so they don’t stick up when the concrete is poured
  • For more in-depth instructions, consult your instruction manual contained in every underfloor heater kit. Or you can always contact the friendly people at Coldbuster for further assistance!

General Information:

  • The Coldbuster in-slab underfloor heater is a bi-directional, single ended 6mm cable, rated at 30W/m and supplied as a cable on a roll.
  • To achieve the required wattage per square meter, secure the cable along the reinforcement rods at 200mm spacing.
  • Heaters have a single 3m long cold tail lead that can be connected to a programmable or manual thermostat control.
  • A range of 13 standard lengths or combination of these lengths caters for all area sizes and shapes.

In Slab Floor Heating

Floor Projections

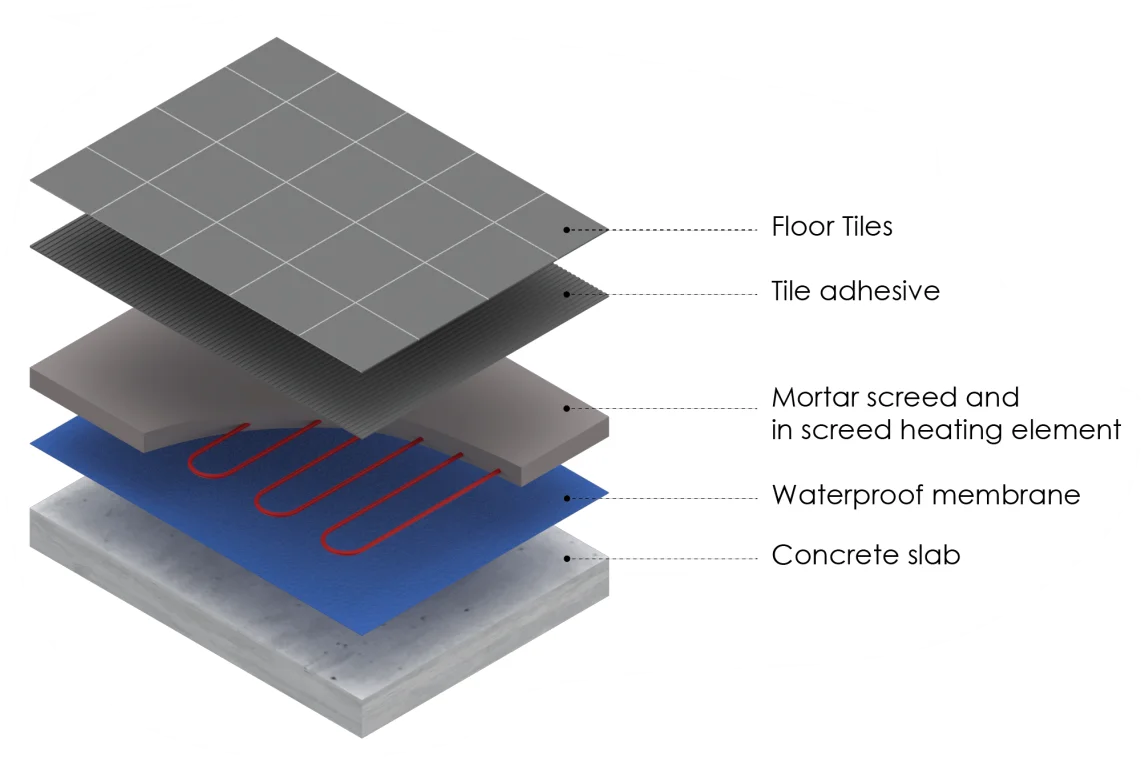

In slab heating for tile floor

In slab heating for polished concrete

Running Cost Calculator

A simple tool estimate the cost of running underfloor heating

Get A Free Quote!

Take advantage of our obligation-free expert support

Insulation Quality: Walls, roof, and floor insulation significantly impact heat retention.

Windows and Doors: Quality and type (double-glazing, seals) affect heat loss and gain

Flooring Material: Different materials (tile, wood, carpet) have varying thermal conductivity.

Subfloor Insulation: Insulating beneath the heating elements reduces heat loss to the ground.

Heating System Design: Layout, spacing, and type of heating elements influence heat distribution.

Room Size and Shape: Larger and irregularly shaped rooms require more energy to heat uniformly.

Ceiling Height: Higher ceilings may need more energy for effective heating.

Furniture Placement: Large furniture can obstruct heat distribution.

Outdoor Temperature: Colder external temperatures require more energy to maintain indoor warmth.

Sunlight Exposure: Rooms with more sunlight can benefit from passive solar heating.

Thermostat Settings: Desired temperature settings and how often they are adjusted.

Occupancy Patterns: Frequency and duration of room use affect heating requirements.

Air Leakage: Drafts from poorly sealed windows/doors and other gaps.

Ventilation System: Mechanical ventilation and air exchange rates impact temperature stability.

Energy Source: The efficiency and cost of the electricity used for heating.

System Efficiency: The efficiency rating of the electric floor heating system.

Thermostat Type: Programmable, smart thermostats can optimize heating schedules.

Zoning: Ability to control heating in different zones/rooms independently.

Supplementary Heating: Use of additional heaters or fireplaces can affect overall temperature.

Room size (compared to heater size)

Insulation/ventilation

Floor substrate

Window Areas and Aspects

Ceiling height

These are some of the factors that may influence the temperature in your home.

Coldbuster will guide you based on our experience so you can achieve an efficient and comfortable heating system in your home with Coldbuster electric floor heating.
