Description

Best In Slab Heating Solutions

Features:

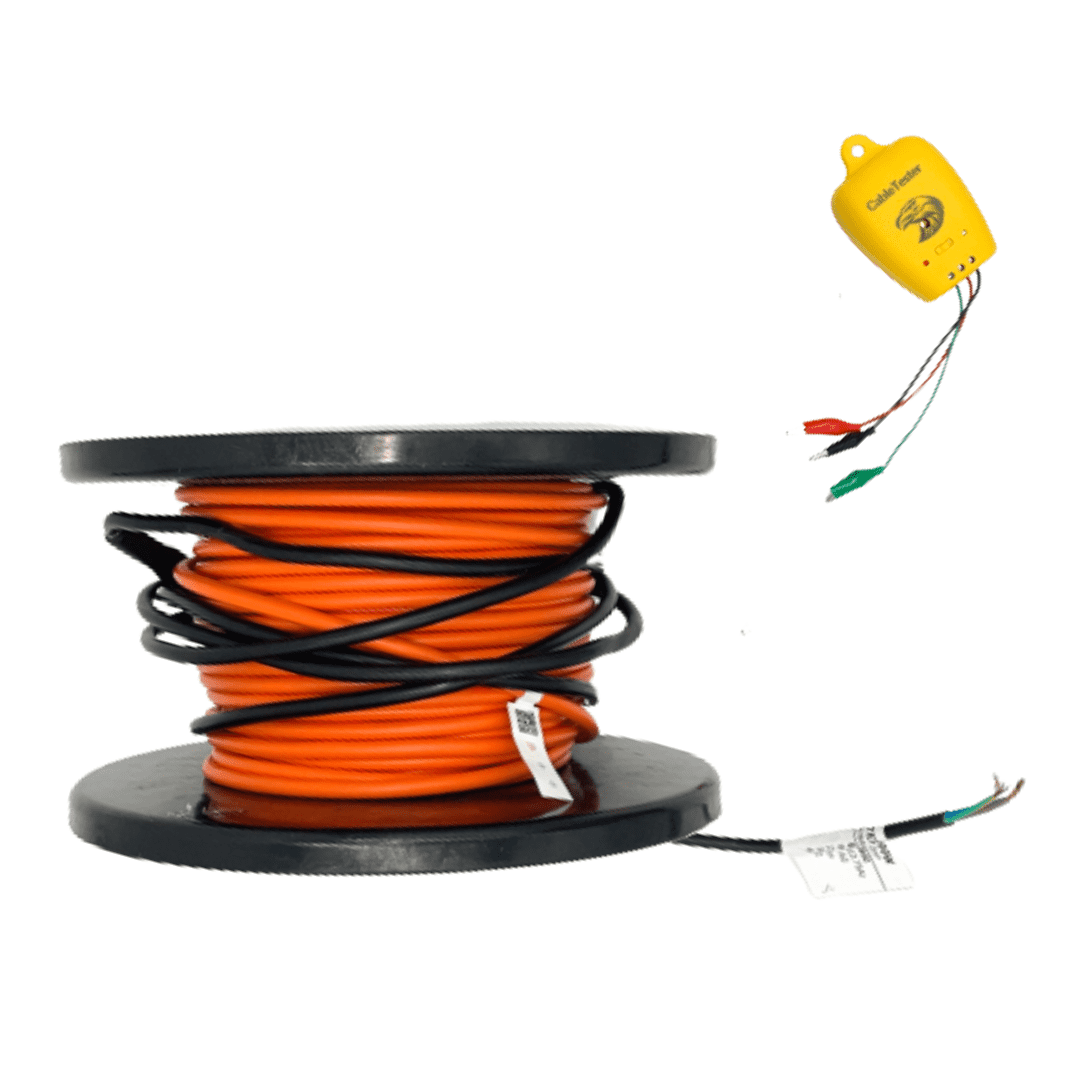

• Teflon coated, 6.5mm thin loose underfloor heating cable, supplied on a reel with a single 3m long cold tail
• 30W/lineal meter


  ---

Included in each Underfloor Heating  kit:

• In-Slab Underfloor Heater
• Installation Monitor (element alarm) with battery
• Installation Manual
• 25 Years Warranty
• Note: Thermostats sold separately


  ---

Basic Installation Instructions:

• It is recommended to install the in-slab underfloor heater with 200mm spaces between each run (matching typical reinforcement grid spacing) to achieve the correct wattage per square meter
• Plan heater layout before securing the heating to the reinforcement grid in order to ensure it will fit properly

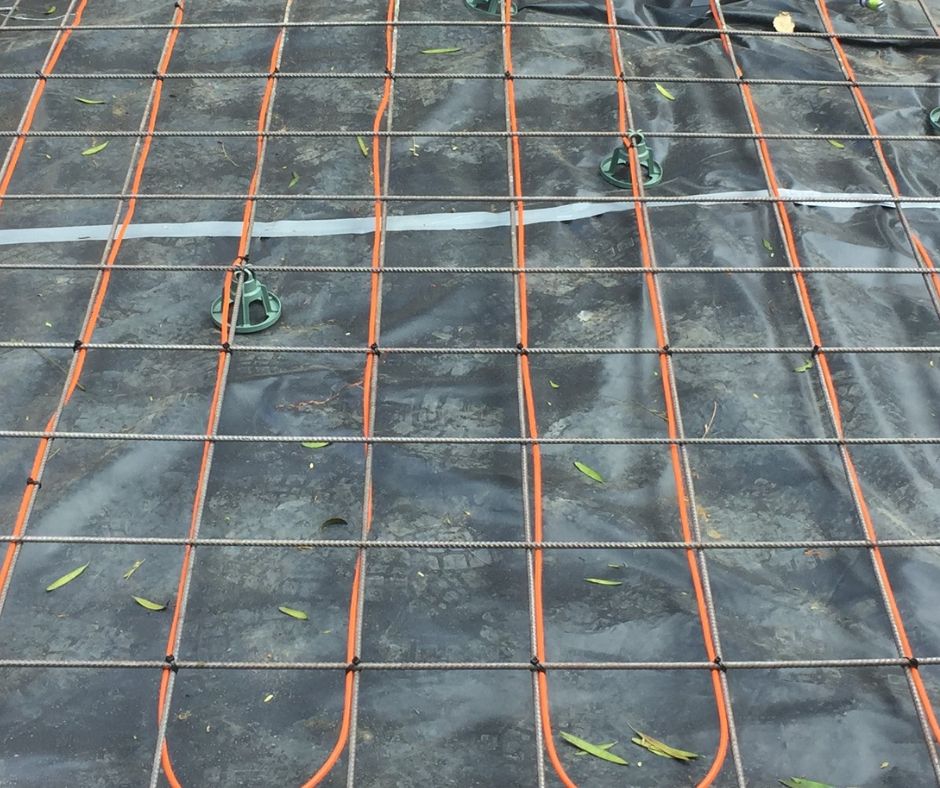

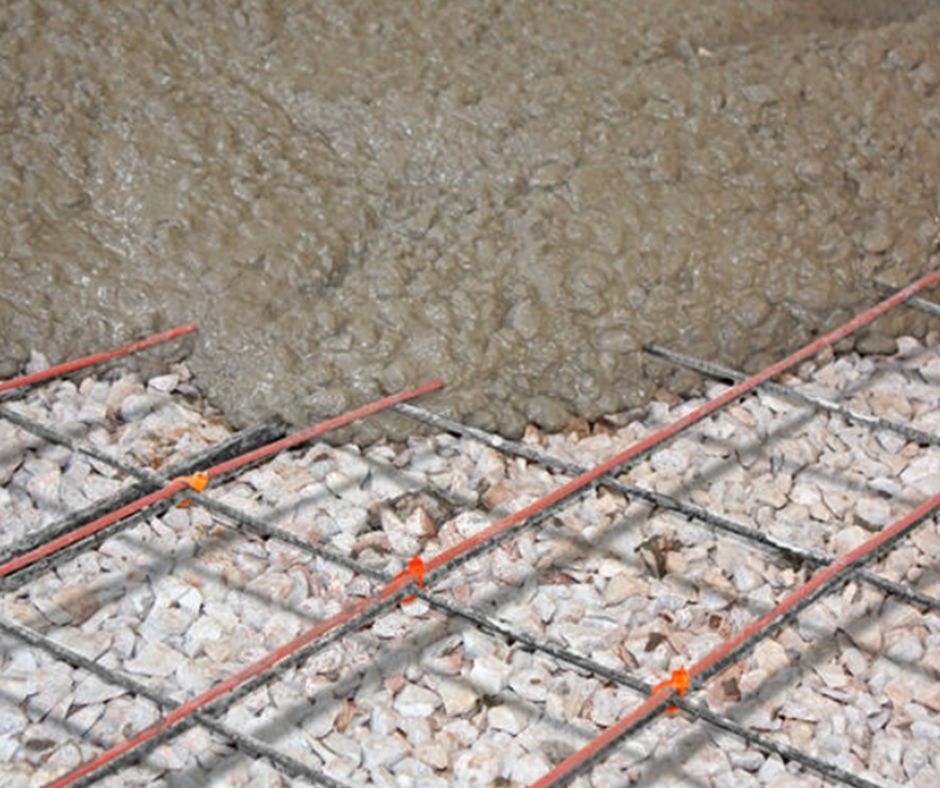

• Secure the heater to the reinforcement grid using cable ties and cut the cable ties so they don’t stick up when the concrete is poured
• For more in-depth instructions, consult your instruction manual contained in every underfloor heater kit. Or you can always contact the friendly people at Coldbuster for further assistance!


  ---

General Information:

• The Coldbuster in-slab underfloor heater is a bi-directional, single ended 6mm cable, rated at 30W/m and supplied as a cable on a roll.
• To achieve the required wattage per square meter, secure the cable along the reinforcement rods at 200mm spacing.
• Heaters have a single 3m long cold tail lead that can be connected to a programmable or manual thermostat control.
• A range of 13 standard lengths or combination of these lengths caters for all area sizes and shapes.
